Yuchai Diesel Engine Self Generating Power System

FOB Reference Price:Get Latest Price
US$5,000.00 - US$13,500.00 / Case | 1 Case/Cases (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
KADA
Model Number:
Yuchai series
Output Type:
AC Three Phase
Speed:
1500rmp
Frequency:
50Hz
Rated Power:
30-300kw
Rated Voltage:
230/400V or 380V
Rated Current:
505A
Warranty:
1 year for machine
Alternator:
Stamford
Engine:
Yuchai
Color:
According per order
Connecting type:
3 phase, 4 wire
Protection grade:
IP22
Starting method:
Key start / Automatic start
Speed governing:
Electronic speed governor
Air intake:
Turbocharged
Type:
Open/Silent generator
Supply Ability
Supply Ability:
5000 Case/Cases per Month
Packaging & Delivery
Packaging Details
Yuchai Diesel Engine Self Generating Power System: Naked Packing/Standard Export Packing
Port
Fuzhou

Yuchai Diesel Engine Self Generating Power System



Technical Data

yuchai data

genset model: YCS-250KW

standby output:258kw

prime output:250kw

phase & wire: 3phase,4 wire

cos:0.8

genset size:  2.9m*1.02*1.6m

engine model: YC6M320/258kw

engine cylinder:6L

fuel consumption : <=189 g/Kw*h

bore*stroke : 120*138mm*mm

cooling method: water cooled

start: electric

generator model:KD274K/250KW

control panel:Smartgen 1780

-4-5

genset 15

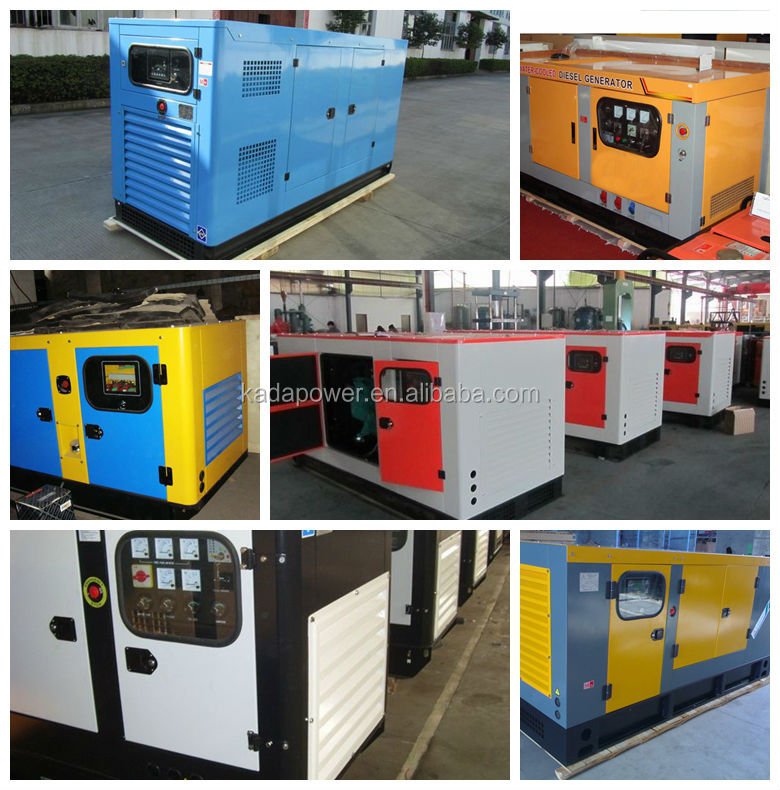

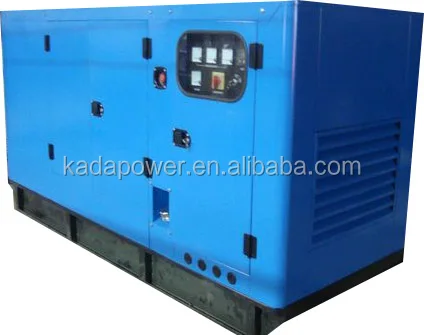

Canopy

Canopy

All canopy designed with modular prinples

All metal canopy parts painted by electrostatic polyester power paint

Water proof design ensure that the noise leve be controled in small scope

Convenient to lift and move

Easy to mantain and operate.

cummins producing01

Alternator Features

Alternator Features

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

03

stamford 11

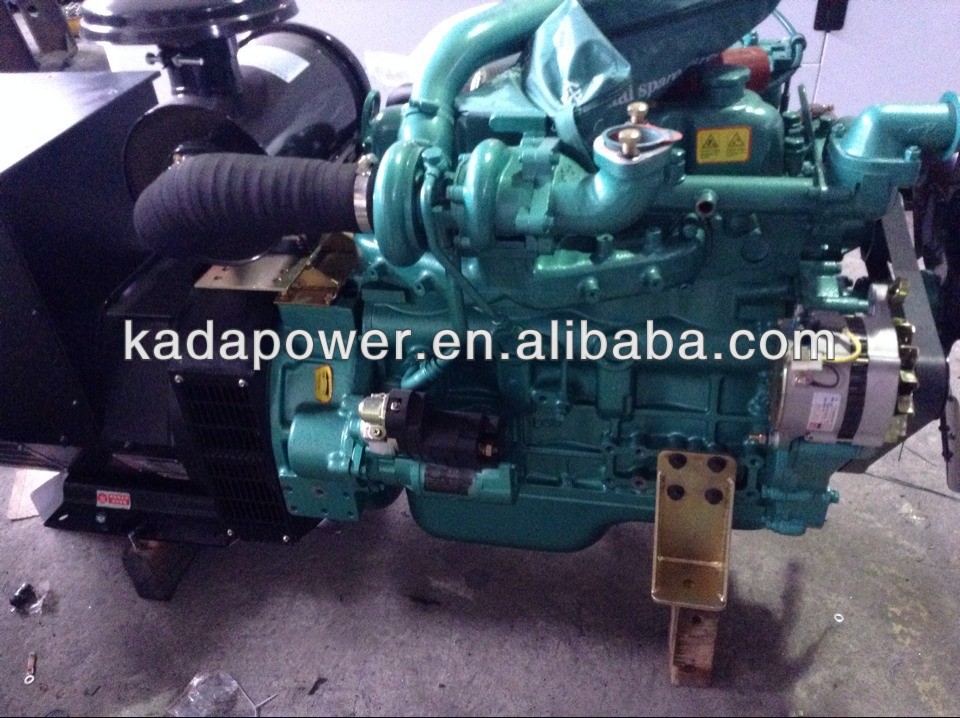

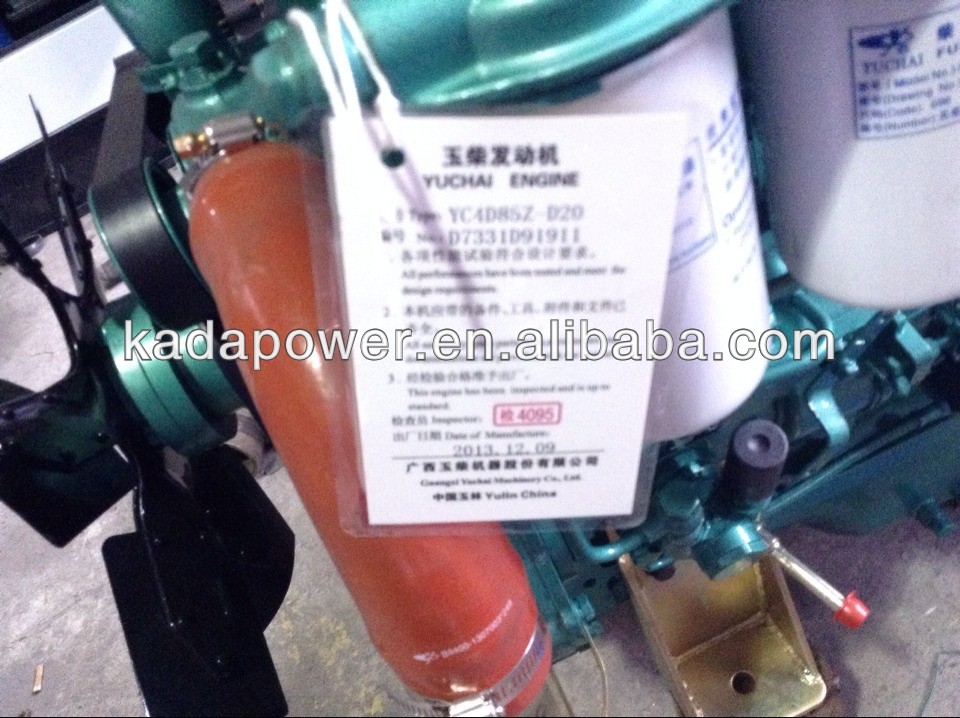

Engine Features

Engine Features

1.Yuchai Engine is available

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily

Yuchai Engine 2.jpg



Yuchai Engine 1.jpg

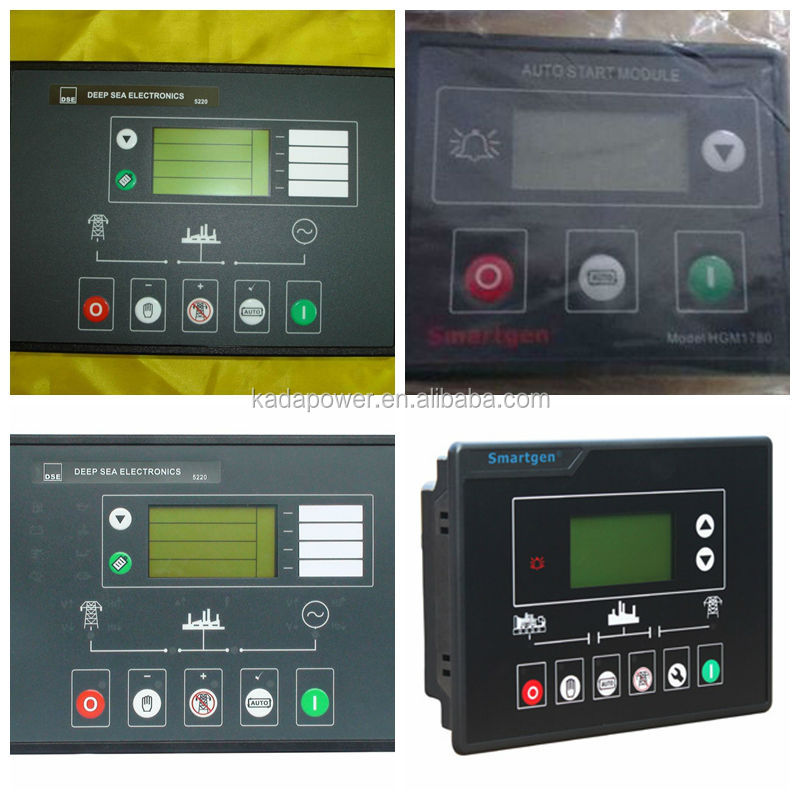

Control Panel

Control Panel:
The panel is provided with:
A) Standard engine instrumentation
B) Voltmeter with selector switch
C) Ammeter with selector switch
D) Frequency meter
E) Current transformers
F) Instrument fuses duly wired and ferruled
G) MCB of suitable rating with overload and short circuit protection
H) With AMF control panel or with ATS (automatic transfer system)
I) With CE ISO certification

01

Guarantee for Genset

KADA Guarantee for Generator

1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent thought FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
4) 24 hours service hotline is available for customers.

635086806_052

More Choice

     KADA Copy Stamford, ST STC series generator, SD SDC series generating & welding dual-use generator, Diesel Generator Set with many kinds of international renowned engine to choose. Portable Gasoline Generator, Air-cooled Diesel Generator Soundproof, Water Pump, Motor, etc.

more choice



Contact

Welcome to inquiry and we will do our best!
